Specification:

  • Equipment Fire Alarm System
  • Fire Alarm Control Panel
    • Brand Minerva
    • Type T1016
    • Approval PR EN54-4
    • Product NT100ALB
    • Voltage 230VAC
    • Frequency 50Hz
    • Current 2A Class 1
  • Fire Alarm Sensor Smoke and Heat Detector
    • Brand Tyco
    • Type 601P-M Conventional
    • Product By Tyco Safety Product, UK

Error Issue:

  1. Condition General Fault.
  2. Some detector is not functioning.
  3. Some Break Glass is not function.

Action Taken

Introduce.

  • Zone consists of:
    • Zone Location / Area
    • Zone 1 Navigasi Bridge Deck
    • Zone 2 Bridge Deck
    • Zone 3 Forecastle Deck
    • Zone 4 Main Deck
    • Zone 5 Engine Room
    • Zone 6 Bow Thruster Room
    • Zone 7 Steering Gear Room
    • Zone 8 Emergency Genset Room

Repairs on the control unit:

9 Volt battery replacement. This battery is a battery backup to save all the settings and system configuration
9 Volt battery replacement. This battery is a battery backup to save all the settings and system configuration
9 Volt battery replacement. This battery is a battery backup to save all the settings and system configuration 2
9 Volt battery replacement. This battery is a battery backup to save all the settings and system configuration 2

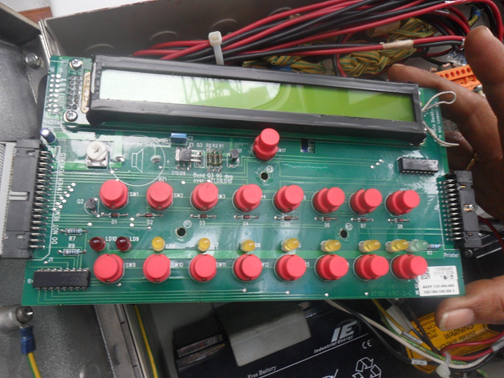

Replacement of two microswitch, namely: accept and reset switches.
Replacement of two microswitch, namely: accept and reset switches.
Installation / additional resistors on all unused output control. Because the resistor as the end of the line representing the zone system. Avoid general fault indication.
Installation / additional resistors on all unused output control. Because the resistor as the end of the line representing the zone system. Avoid general fault indication.

Detector Unit

1. Checking the performance of all of the detector.
2. One detector was found broken, need replacement.

One detector was found broken, need replacement.
One detector was found broken, need replacement.
One detector was found broken, need replacement.

Break Glass

1. Checking the performance of all of the brake glass.

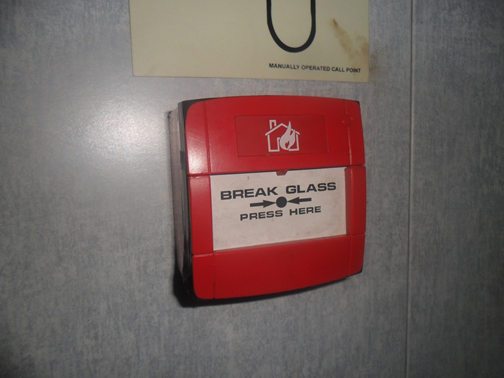

2. Two unit Break Glass  was found broken, need replacement.
Two unit Break Glass  was found broken, need replacement.
Two unit Break Glass  was found broken, need replacement.

Solution Resulting:

  1. The system has worked normally.
  2. General fault does not appear on the screen.
  3. It has been done with smoke test smoke testing.
Fire Alarm Control Panel Unit
Fire Alarm Control Panel Unit

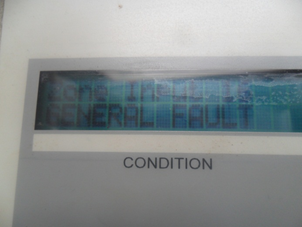

Screen On Fire Alarm Control Panel
Screen On Fire Alarm Control Panel
Detector Test
Detector Test
Detector Unit
Detector Unit
