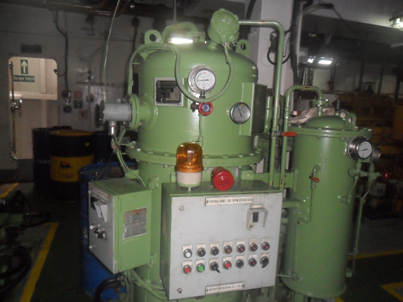

General Service OWS GRS-10ED ASL Amber

General Service OWS GRS-10ED ASL Amber

General Service OWS GRS-10ED ASL Amber

Specification:

1. 15 PPM Bilge Separator Unit

  • Equipment 15 PPM Bilge Separator Unit
  • Brand GRS
  • Type GRS-10ED
  • Certificate DS-45
  • Capacity 1,0 M2/HR
  • Max. Oper Press 2,5 Kg/cm2
  • Volume 1st: 360l/ 2nd: 60l
  • Net Weight 1st: 370Kg / 2nd: 125Kg
  • Serial Number GRS10083
  • Made By Georing Engineering Co. LTD

2. Control Panel for 15 PPM Bilge Separator

  • Equipment Control Panel
  • Brand GRS
  • Type -
  • Product By Georing Engineering Co. LTD
  • Power Voltage 450VAC

3. Oil Level Detector

  • Equipment Oil Level Detector
  • Type LSC-75
  • Power Voltage 220VAC
  • Output Control + Alarm

4. Pressure Gauge Chamber 1 and 2

  • Equipment Pressure Gauge
  • Brand UNITH
  • Range 0 – 6 BAR

5. Local Thermometer Chamber (Analog)

  • Equipment Thermometer
  • Brand Sehkwang
  • Range 0 – 1000C
  • Type C21

6. Control Panel for Heater

  • Equipment Control Panel
  • Brand GRS
  • Power Voltage 450VAC
  • Part
    • Temperature Controller
    • Source Lamp
    • Heater Indicator
    • Heater Selector

7. Temperature Sensor

  • Equipment Temperature Sensor
  • Type Resistance Bulb
  • Element PT100Ω
  • Class 03
  • Product By Sunglim Sensortro

8. Bilge Pump

  • Equipment Bilge Motor Pump
  • Brand Allweiler
  • Type ANBP 6,2
  • Serial 8020226

9. Bilge Pump Motor

  • Equipment Motor
  • Brand Getriebebau NORD
  • Type AL-71 L
General Service OWS GRS-10ED ASL Amber
General Service OWS GRS-10ED ASL Amber

Error Issue:

Thorough checking, including:
  1. System Control,
  2. 15 PPM Bilge Separator Unit,
  3. Control Panel for 15 PPM Bilge Separator,
  4. Oil Level Detector,
  5. Pressure Gauge Chamber 1 and 2,
  6. Control Panel for Heater,
  7. Temperature Sensor,
  8. Bilge Pump,
  9. Bilge Pump Motor

Action Taken

1. System Control

Checking wiring in the control panel and the relationship with all detectors, such as: level sensors, temperature sensors, as well as acting devices, such as solenoid valve, bilge pump motor.

2. 15 PPM Bilge Separator Unit

OWS unit type is not using special readings PPM, there is no indicator to show the value of PPM. PPM readout function is fixed.

3. Control Panel for 15 PPM Bilge Separator

Checking the system settings on a panel necessary for direct connected with sensing and acting equipment.

4. Oil Level Detector

The separation between the water and the oil separator chamber, generating residual oil. To discard the oil from the chamber that allows the necessary volume. Sensors monitor the level, and reported to the system, then ruled solenoid disposal to act.

5. Pressure Gauge Chamber 1 and 2

Pressure chamber to be controlled, in addition to functioning as a local controller, it is also useful for systems that: the water from the process when discarded.

6. Control Panel for Heater

To speed up the process of separation of oil and water, need the help of heat. Because the temperature conditions allow the position of water and oil will eventually separated according to weight density.

7. Bilge Pump and Motor for Bilge Pump

Serves to enter the water from the bilge tank into the chamber for processing.

Solution Resulting:

  1. Control system as a whole works well.
  2. Because this unit is 15 PPM Bilge Separator Unit to have a FIX value, then no calibration and parameter settings.
  3. Oil Level Detector, Needs improvement on the electrode, adjust the distance between the electrode and the grounding. Fixing the connection on the terminal. And make sure the reaction occurs when there is a change in resistance between the electrode and the grounding.
  4. There is no problem with the device: Control Panel for Heater, Pressure Gauge Chamber 1 and 2, Bilge Pump Motor.
  5. Bilge Pump types of screw pump problem, not the problem of the motor. Possibilities are many dirt between the axle screw and the pump housing. So the result can not rotate. This has been solved by the mechanics.

Documentation

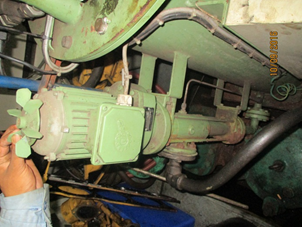

Bilge Pump Motor
Bilge Pump Motor

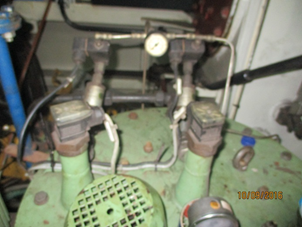

Heater Element Terminals
Heater Element Terminals

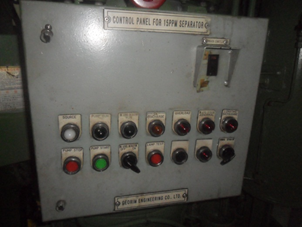

Control Panel for 15 PPM Bilge Separator
Control Panel for 15 PPM Bilge Separator

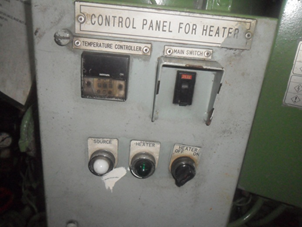

Control Panel for Heater
Control Panel for Heater

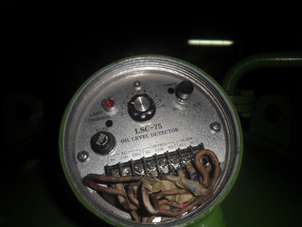

Oil Level Detector
Oil Level Detector

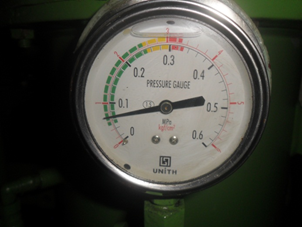

Chamber Pressure Gauge
Chamber Pressure Gauge
Bilge Pump
Bilge Pump

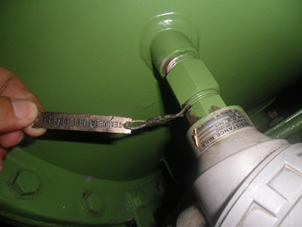

Temperature Sensor
Temperature Sensor
