General Service Bilge Alarm System Huayan BJ-16 ASL Amber

General Service Bilge Alarm System Huayan BJ-16 ASL Amber

General Service Bilge Alarm System Huayan BJ-16 ASL Amber

Specification:

1. Monitoring Alarm Controller

Equipment Monitoring Alarm Controller
  • Brand Huayan
  • Type BJ-16
  • Power Supply 24VDC +-10%
  • Color Dull Black
  • IP Rating IP20
  • Datect Capacity 16 ways

2. Level Control

Equipment Level Control
  • Type Level Switch

Error Issue:

  • Requires a thorough system check.
  • Checking the bilge level sensors.
  • Checking the Monitoring Alarm Controller

Action Taken

  • Data Collection
    • Total Sensor Level Bilge 4 Unit
    • Total Monitoring Alarm 1 Unit
  • Removing all level sensors to ensure proper use of testing done.
  • Checks on the monitor control system.
  • Check wiring

Solution Resulting:

  • Conditions bilge level sensor
    • Damaged 2 Unit
    • Good Performance 2 Unit
      • Fix the sensor unit with a good result, the device can work well.
  • No problems on the control monitor bilge alarm.

Documentation

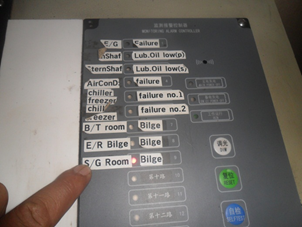

Interface of Bilge Monitor Alarm System
Interface of Bilge Monitor Alarm System

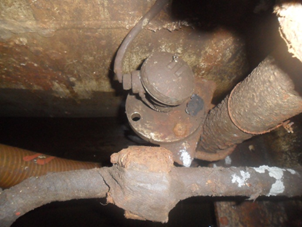

Level Sensor with levell switch mode
Level Sensor with levell switch mode
Panel Monitoring Alarm System Bilge worked well
Panel Monitoring Alarm System Bilge worked well
Wiring Installation
Wiring Installation
Materi Job :
